Packaged Units

Save on space with a single cabinet

Packaged Units

Save on space with a single cabinet

Whether you’re replacing an existing system or installing in new home construction, RunTru packaged units save on space and make installation a snap by housing the heating and cooling equipment within a single outdoor cabinet.

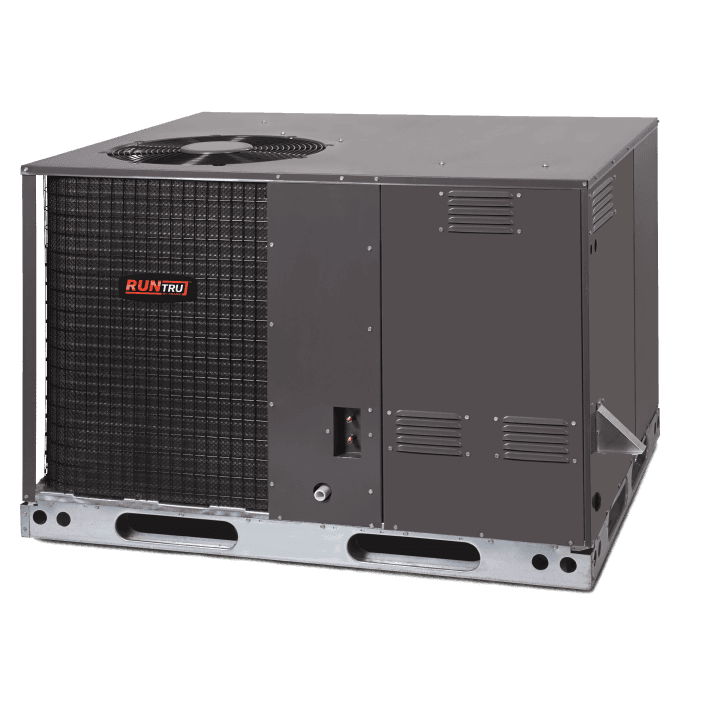

4YCL4 Ultra-Low NOx (California Exclusive)

Ultra-Low NOx Emissions
Durable and Innovative Design
Quiet Operation
High Altitude Testing
Versatile Installation
Dual Powered

13.4 SEER2 Air Gas/Electric Packaged Unit

Model	Length	Width	Height (w/o Base Rails)	Height (with Base Rails)	Unit Weight	Shipping Weight	Electrical
Model	Length	Width	Height (w/o Base Rails)	Height (with Base Rails)	Unit Weight	Shipping Weight	Electrical	4YCL4024B1055A	55.8	47.5	31.3	35.0	390	406	230-60-1
4YCL4030B1070A	55.8	47.5	31.3	35.0	390	406	230-60-1
4YCL4036B1070A	55.8	47.5	31.3	35.0	390	406	230-60-1
4YCL4042B1100A	55.8	47.5	35.3	39.0	438	455	230-60-1
AYCL4048B1100A	55.8	47.5	35.3	39.0	438	455	230-60-1
4YCL4060B1100A	55.8	47.5	43.3	47.0	490	507	230-60-1

SEER2, or Seasonal Energy Efficiency Ratio, measures how efficiently a unit can cool your home in the summer. The higher the SEER2 number, the less energy you’ll use.

RunTru Limited Warranty:
5-year limited warranty for functional parts
10-year warranty for functional parts with registration
20-year warranty for heat exchanger

Find out more about the RunTru Limited Warranty here.

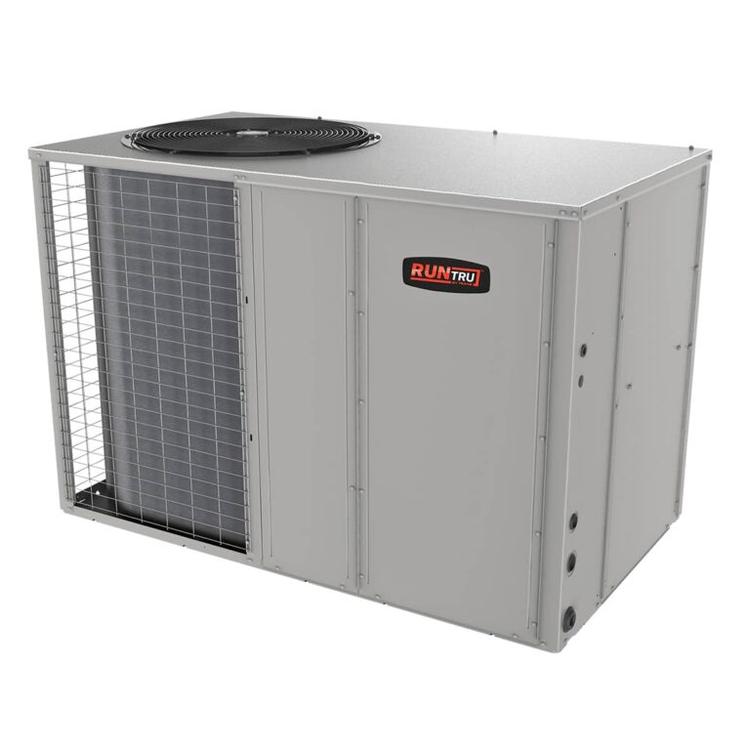

4TCA4 Packaged Air Conditioner Unit

Small footprint for easy installation
Fits low lot lines
Suitable for use in manufactured homes
13.4 SEER2
Assembled in Vidalia, Georgia

13.4 SEER2 Air Conditioner Convertible Packaged Unit

Model	SEER2	Compressor	Capacity (Tons)	Dimensions (in)
Model	SEER2	Compressor	Capacity (Tons)	H	W	D
4TCA4024C1000A	13.40	Rotary	23,000	36.15	60.81	34.90
4TCA4030C1000A	13.40	Rotary	27,800	36.15	60.81	34.90
4TCA4036C1000A	13.40	Scroll	35,000	36.15	60.81	34.90
4TCA4042C1000A	13.40	Scroll	39,500	36.15	60.81	34.90
4TCA4048C1000A	13.40	Scroll	45,500	41.15	60.81	34.90
4TCA4060C1000A	13.40	Scroll	57,000	41.15	60.81	34.90

SEER2, or Seasonal Energy Efficiency Ratio, measures how efficiently a unit can cool your home in the summer. The higher the SEER2 number, the less energy you’ll use.

RunTru Limited Warranty:
5-year limited warranty for functional parts
10-year warranty for functional parts with registration
20-year warranty for heat exchanger

Find out more about the RunTru Limited Warranty here.

4WCA4 Packaged Heat Pump Unit

Small footprint for easy installation
Fits low lot lines
Suitable for use in manufactured homes
13.4 SEER2
Assembled in Vidalia, Georgia

13.4 SEER2 Heat Pump Convertible Packaged Unit

Model	SEER2	Compressor	Cooling Capacity	HSPF2	Heating Capacity	Dimensions (in)
Model	SEER2	Compressor	Cooling Capacity	HSPF2	Heating Capacity	H	W	D
4WCA4024C1000A	13.40	Scroll	23,600	6.70	23,000	36.15	60.81	34.90
4WCA4030C1000A	13.40	Scroll	29,000	6.70	26,400	36.15	60.81	34.90
4WCA4036C1000A	13.40	Scroll	35,000	6.70	30,200	36.15	60.81	34.90
4WCA4042C1000A	13.40	Scroll	41,000	6.70	37,400	36.15	60.81	34.90
4WCA4048C1000A	13.40	Scroll	46,500	6.70	44,500	41.15	60.81	34.90
4WCA4060C1000A	13.40	Scroll	56,000	6.70	54,000	41.15	60.81	34.90

SEER2, or Seasonal Energy Efficiency Ratio, measures how efficiently a unit can cool your home in the summer. The higher the SEER2 number, the less energy you’ll use.

RunTru Limited Warranty:
5-year limited warranty for functional parts
10-year warranty for functional parts with registration
20-year warranty for heat exchanger

Find out more about the RunTru Limited Warranty here.
