Furnaces
Turning on the heat
Furnaces
Turning on the heat
When winter puts a chill in the air, RunTru gas furnaces really turn on the heat, streaming warmth through your entire home. You can rest assured you won’t find this level of quality construction, dependability and efficiency at the same price point.

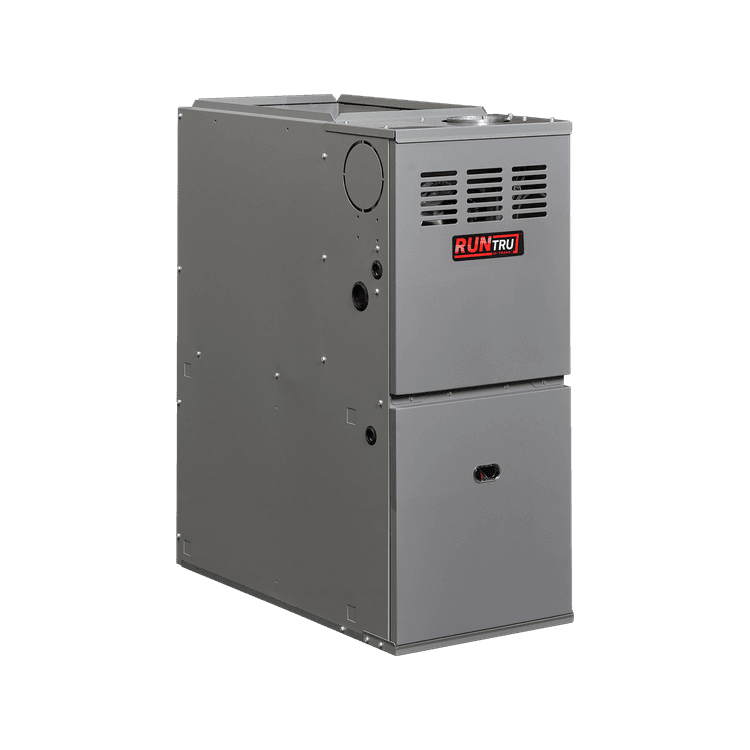

A801X Furnace
- 80% AFUE
- Constant torque (ECM) motor
- 34″ cabinet height on all models
- 2-5 ton models available in each family
- Multiple venting options offered in each poise
- Durable, galvanized steel cabinet
- Select models compliant with California 40ng/J Low-NOx requirements (see specifications below)
- Assembled in Trenton, New Jersey
A801X Furnace
A801X 80% AFUE Multi-Position Furnaces
Model | CA Low NOx Model Number | Input BTU/h | Nominal Airflow (Tons) | Dimensions (in) | ||
H | W | D | ||||
A801X026AM2SCA | A801X026AM2TCA | 26,000 | 2 | 34 | 14.5 | 28.75 |
A801X040AM3SCA | A801X040AM3TCA | 40,000 | 2-3 | 34 | 14.5 | 28.75 |
A801X040BM2SCA | A801X040BM2TCA | 40,000 | 2 | 34 | 17.5 | 28.75 |
A801X060BM3SCA | A801X060BM3TCA | 60,000 | 3 | 34 | 17.5 | 28.75 |
A801X060BM4SCA | A801X060BM4TCA | 60,000 | 4 | 34 | 17.5 | 28.75 |
A801X080BM4SCA | A801X080BM4TCA | 80,000 | 3-4 | 34 | 17.5 | 28.75 |
A801X080CM5SCA | A801X080CM5TCA | 80,000 | 4-5 | 34 | 21 | 28.75 |
A801X100CM5SCA | A801X100CM5TCA | 100,000 | 4-5 | 34 | 21 | 28.75 |
A801X120DM5SCA | A801X120DM5TCA | 120,000 | 5 | 34 | 24.5 | 28.75 |
AFUE stands for Annual Fuel Utilization Efficiency, which measures a furnace’s heating efficiency. The higher the AFUE, the less energy you’ll use to maintain pleasant temperatures.
RunTru Limited Warranty:
5-year limited warranty for functional parts
10-year warranty for functional parts with registration
20-year warranty for heat exchanger
Find out more about the RunTru Limited Warranty here.
Energy and Owner Guides
241.85 KB
241.62 KB
241.94 KB
241.71 KB
241.88 KB
241.63 KB
241.94 KB
241.71 KB
241.95 KB
241.73 KB
241.96 KB
241.79 KB
241.78 KB
241.58 KB
241.73 KB
241.55 KB
Contractor Resources
Technical Documents
4.64 MB

A951X Furnace
- Up to 96% AFUE
- Constant torque (ECM) motor
- 34″ cabinet height on all models
- 2-5 ton models available in each family
- Stainless steel primary and secondary heat exchangers
- Compliant with California 40ng/J Low-NOx requirements
- Energy Star® Certified
- Assembled in Trenton, New Jersey
A951X Furnace
A951X 95-96% AFUE Upflow Furnaces
Model | Input BTU/h | Nominal Airflow (Tons) | AFUE | Dimensions (in) | ||
H | W | D | ||||
A951X040BU3SAB | 40,000 | 2-3 | 96% | 34 | 17.5 | 28.75 |
A951X060BU4SAB | 60,000 | 3-4 | 96% | 34 | 17.5 | 28.75 |
A951X080BU4SAB | 80,000 | 3-4 | 96% | 34 | 17.5 | 28.75 |
A951X080CU5SAB | 80,000 | 4-5 | 96% | 34 | 21 | 28.75 |
A951X100CU5SAB | 100,000 | 4-5 | 95% | 34 | 21 | 28.75 |
A951X120DU5SAB | 120,000 | 5 | 95% | 34 | 24.5 | 28.75 |
A951X 95-96% AFUE Downflow Furnaces
Model | Input BTU/h | Nominal Airflow (Tons) | AFUE | Dimensions (in) | ||
H | W | D | ||||
A951X040BD3SAB | 40,000 | 2-3 | 96% | 34 | 17.5 | 28.75 |
A951X060BD3SAB | 60,000 | 3 | 95% | 34 | 17.5 | 28.75 |
A951X080BD4SAB | 80,000 | 4 | 95% | 34 | 17.5 | 28.75 |
A951X100CD5SAB | 100,000 | 5 | 95% | 34 | 21 | 28.75 |
A951X120DD5SAB | 120,000 | 5 | 95% | 34 | 24.5 | 28.75 |
AFUE stands for Annual Fuel Utilization Efficiency, which measures a furnace’s heating efficiency. The higher the AFUE, the less energy you’ll use to maintain pleasant temperatures.
RunTru Limited Warranty:
5-year limited warranty for functional parts
10-year warranty for functional parts with registration
20-year warranty for heat exchanger
Find out more about the RunTru Limited Warranty here.
Energy and Owner Guides
260.84 KB
260.88 KB
260.91 KB
260.87 KB
260.21 KB
260.89 KB
260.93 KB
260.68 KB
260.04 KB
259.92 KB
259.96 KB
Contractor Resources

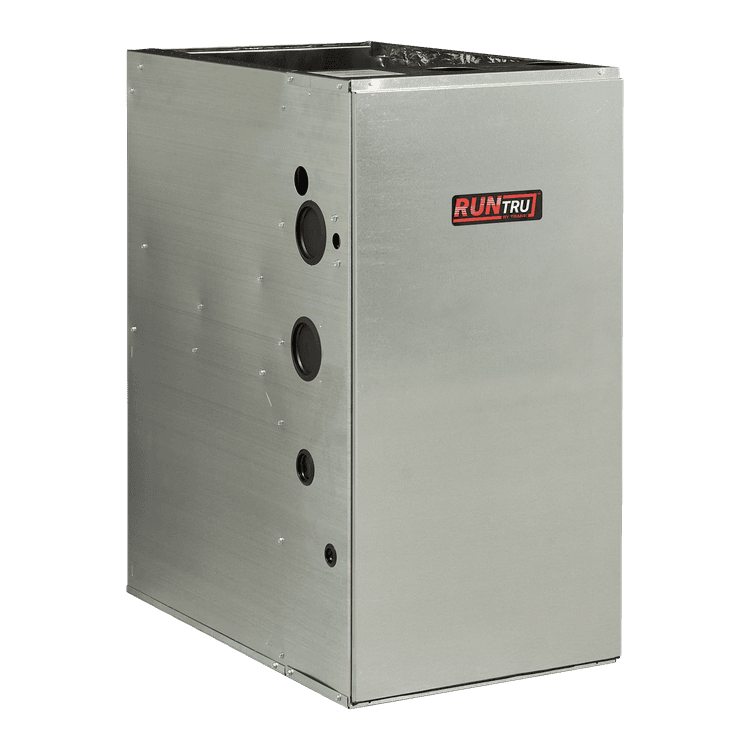

A952V Furnace
- 96% AFUE
- Variable speed (ECM) motor
- 34″ cabinet height on all models
- 2-5 ton models available in each family
- Stainless steel primary and secondary heat exchangers
- Compliant with California 40ng/J Low-NOx requirements
- Energy Star® Certified
- Assembled in Trenton, New Jersey
A952V Furnace
A952V 96% AFUE Upflow Furnaces
Model | Input BTU/h | Nominal Airflow (Tons) | AFUE | Dimensions (in) | ||
H | W | D | ||||
A952V040BU3SAB | 40,000 | 3 | 96% | 34 | 17.5 | 28.75 |
A952V060BU3SAB | 60,000 | 3 | 96% | 34 | 17.5 | 28.75 |
A952V060BU4SAB | 60,000 | 4 | 96% | 34 | 17.5 | 28.75 |
A952V080BU4SAB | 80,000 | 4 | 96% | 34 | 17.5 | 28.75 |
A952V080CU5SAB | 80,000 | 5 | 96% | 34 | 21 | 28.75 |
A952V100CU4SAB | 100,000 | 4 | 96% | 34 | 21 | 28.75 |
A952V100CU5SAB | 100,000 | 5 | 96% | 34 | 21 | 28.75 |
A952V120DU5SAB | 120,000 | 5 | 96% | 34 | 24.5 | 28.75 |
A952V 96% AFUE Downflow Furnaces
Model | Input BTU/h | Nominal Airflow (Tons) | AFUE | Dimensions (in) | ||
H | W | D | ||||
A952V040BD3SAB | 40,000 | 3 | 96% | 34 | 17.5 | 28.75 |
A952V060BD3SAB | 60,000 | 3 | 96% | 34 | 17.5 | 28.75 |
A952V080BD4SAB | 80,000 | 4 | 96% | 34 | 17.5 | 28.75 |
A952V100CD4SAB | 100,000 | 4 | 96% | 34 | 21 | 28.75 |
A952V100CD5SAB | 100,000 | 5 | 96% | 34 | 21 | 28.75 |
A952V120DD5SAB | 120,000 | 5 | 96% | 34 | 24.5 | 28.75 |
AFUE stands for Annual Fuel Utilization Efficiency, which measures a furnace’s heating efficiency. The higher the AFUE, the less energy you’ll use to maintain pleasant temperatures.
RunTru Limited Warranty:
5-year limited warranty for functional parts
10-year warranty for functional parts with registration
20-year warranty for heat exchanger
Find out more about the RunTru Limited Warranty here.
Energy and Owner Guides
261.75 KB
261.76 KB
261.75 KB
261.72 KB
267.46 KB
261.73 KB
261.50 KB
261.59 KB
261.50 KB
261.54 KB
Contractor Resources
Technical Documents
17.68 MB
20.52 MB
20.52 MB
